+title: "Adding Anchors 🔗 to Gatsby, using Sanity.io"
+date: 2019-10-14
+author: "ajonp"
+excerpt: "Have you ever hunted around for days trying to find that simple package for adding anchor links to your Gatsby blog? It is easier than you might think!"
+tags: ["browser-apis", "sanity"]
+canonicalLink: https://ajonp.com/blog/anchor-links-from-sanity-in-gatsby
+publishedAt: ajonp.com
+---
+
+![Gatsby Link](https://res.cloudinary.com/ajonp/image/upload/v1571083718/ajonp-ajonp-com/blog/gatsby-anchor-links/Gatsby_Sanity_Anchor_Links.webp)
+
+# Anchor Links 🔗 from Sanity in Gatsby
+
+> TL;DR version is make sure you implement `onRouteUpdate` and `shouldUpdateScroll` in `gatsby-browser.js`.
+
+## So what is an anchor link?
+
+Anchor links are a way to navigate within the same page in HTML. The easiest way to think of them are like a table of contents, or bookmarks on a page.
+You will see anchors used often in markdown pages that have header tags in the form of `#`. Now in order for those normal header tags to have a link they must be wrapped on the front end with a link tag, similar to this: `<a href="#anchor"><h2>Headline Link</h2></a>`. If you inspect the code on this page, you will even see an example of just that, as the blog is written in markdown and converted to HTML.
+
+## Sanity.io
+
+### How does this work with Sanity.io
+
+[Sanity](https://www.sanity.io/) is a headless content based CMS. You write in a [rich text editor](https://www.sanity.io/docs/what-you-need-to-know-about-block-text), which creates [portable text](https://www.portabletext.org/). So unlike markdown you wont have to convert header `#` items but you will have to serialize the portable text into something that Gatsby can understand. I won't dive too deeply into how you create a site using sanity.io there are some [great guides](https://www.gatsbyjs.org/packages/gatsby-source-sanity/?=sanity#gatsby-source-sanity) for that using `gatsby-source-sanity`.
+
+### Extending the Sanity Gatsby blog
+
+Sanity.io's Gatsby [blog example](https://www.sanity.io/guides/the-blog-template), is a great starting point for how to get up and running quickly. You can use that and then extend the functionality however you would like. In the example there is a file for posts which looks similar to below, what we really care about is the line `<div>{_rawBody && <PortableText blocks={_rawBody} />}</div>`.
+
+```tsx
+import React from "react"
+import PortableText from "./portableText"
+import Card from "../Card"
+
+export default props => {
+  const { _rawBody, authors, categories } = props
+  return (
+    <article className="flex flex-col w-full max-w-xl md:max-w-1xl md:max-w-2xl lg:max-w-3xl xl:max-w-6xl m-2 md:max-m-8 md:max-m-8 lg:max-m-8 xl:m-8">
+      <div className="w-full">
+        <Card {...props} />
+      </div>
+      <section className="markdown bg-white w-full rounded mt-4 p-4">
+        <div>{_rawBody && <PortableText blocks={_rawBody} />}</div>
+        <div>
+          <aside>
+            {categories && (
+              <div>
+                <h3>Categories</h3>
+                <ul>
+                  {categories.map(category => (
+                    <li key={category._id}>{category.title}</li>
+                  ))}
+                </ul>
+              </div>
+            )}
+          </aside>
+        </div>
+      </section>
+    </article>
+  )
+}
+```
+
+This is a simple react component that uses [@sanity/block-content-to-react](https://github.com/sanity-io/block-content-to-react). The great part here is that they have allowed for serializers and you can add a great deal of customization to any of the block based PortableText that you will be receiving from the graphql from Sanity.io.
+
+```tsx
+import React from "react"
+import clientConfig from "../../../client-config"
+import BasePortableText from "@sanity/block-content-to-react"
+import serializers from "../graphql/serializers"
+
+const PortableText = ({ blocks }) => {
+  return (
+    <BasePortableText
+      blocks={blocks}
+      serializers={{ ...serializers }}
+      {...clientConfig.sanity}
+    />
+  )
+}
+
+export default PortableText
+```
+
+### Sanity.io Serializers
+
+The great part about serializers is that you can provide any custom React component that you would like to handle any of the different types that are coming from Sanity.io.
+
+```tsx
+import React from "react"
+import Figure from "./Figure"
+import Code from "./Code"
+import Img from "./Img"
+import Block from "./Block"
+
+const serializers = {
+  types: {
+    authorReference: ({ node }) => <span>{node.author.name}</span>,
+    mainImage: Figure,
+    code: Code,
+    img: Img,
+    block: Block,
+  },
+}
+
+export default serializers
+```
+
+A fun and simple example is `img` although I could add much of this inline, I plan to use [cloudinary's](http://cloudinary.com) image manipulations to apply affects as I would like to my images. So I added a simple component called `Img` that takes in the node and outputs a simple img tag with corresponding alt text.
+
+```tsx
+import React from "react"
+
+export default ({ node }) => {
+  const { asset } = node
+  return <img src={asset.src} alt={asset.alt} />
+}
+```
+

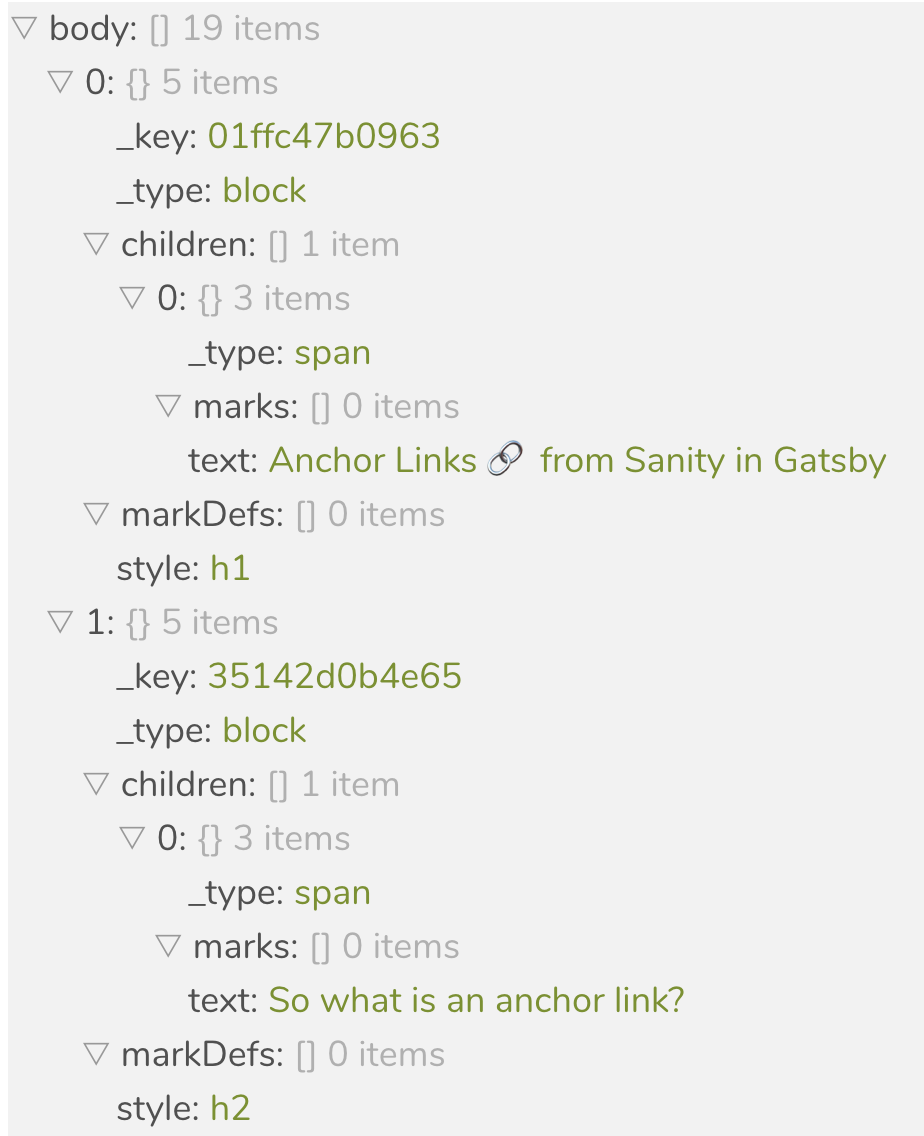

+Now the same can hold true for all the `block` type items that appear with portableText. Because we are using Sanity.io's awesome `@sanity/block-content-to-react` we really wouldn't have to do much here, but since again I am a lazy developer I want to make all those headings magically have anchor tags associated, but our portableText looks something like below:
+
+![PortableText showing header tags](https://res.cloudinary.com/ajonp/image/upload/v1571081647/ajonp-ajonp-com/blog/gatsby-anchor-links/Screen_Shot_2019-10-14_at_2.33.46_PM.webp)
+
+So in order to make that happen we added the `block: Block` serializer above which Sanity.io has a great [example](https://github.com/sanity-io/block-content-to-react#customizing-default-serializer-for-block-type) how to setup. My Block looks very similar but it is setting Gatsby Link tags inside each of these headings (well h2 and h3 for now).
+
+```tsx
+import React from "react"
+import { IoMdLink } from "react-icons/io/"
+import { Link } from "gatsby"
+const slugs = require(`github-slugger`)()
+
+export default props => {
+  slugs.reset()
+  const style = props.node.style || "normal"
+  // If Heading Level add Anchor Link
+  if (typeof location !== `undefined` && /^h\d/.test(style)) {
+    const level = style.replace(/[^\d]/g, "")
+    const slug = slugs.slug(props.children[0], false)
+    switch (level) {
+      case "h3":
+        return (
+          <h3 id={slug} className="flex">
+            {props.children}
+            <Link to={`${location.pathname}#${slug}`}>
+              <div className="py-1 pl-1 rotateIn">
+                <IoMdLink />
+              </div>
+            </Link>
+          </h3>
+        )
+      default:
+        return (
+          <h2 id={slug} className="flex">
+            {props.children}
+            <Link to={`${location.pathname}#${slug}`}>
+              <div className="py-1 pl-1 rotateIn">
+                <IoMdLink />
+              </div>
+            </Link>
+          </h2>
+        )
+    }
+  }
+
+  return style === "blockquote" ? (
+    <blockquote>{props.children}</blockquote>
+  ) : (
+    <p>{props.children}</p>
+  )
+}
+```
+
+## Adding Gatsby Anchor Links
+
+Now even though, Knut Melvær has a great guide called [Internal and external links](https://www.sanity.io/guides/portable-text-internal-and-external-links) that covers in great detail how to add links to your front end, I am a fairly lazy developer and I don't want to manually select and add all of my anchor links so that is why I used the above method. This same approach can be made using markdown files using [gatsby-remark-autolink-headers](https://www.gatsbyjs.org/packages/gatsby-remark-autolink-headers/?=remark).
+
+The one missing piece I found is scrolling to the correct location within the page in Gatsby. In order to do this Gatsby provides some awesome [browser-apis](https://www.gatsbyjs.org/docs/browser-apis/). In order for the scrolling to occur when the page is first loaded we need to use `onRouteUpdate` this will allow us to use the location and check for an existance for `hash` which is our anchor link. I also implemented `shouldUpdateScroll` as selecting an internal link did not trigger a route update, so this was needed without refresh.
+
+gatsby-browser.js
+
+```js
+/**
+ * Implement Gatsby's Browser APIs in this file.
+ *
+ * See: https://www.gatsbyjs.org/docs/browser-apis/
+ */
+
+// You can delete this file if you're not using it
+
+exports.onRouteUpdate = ({ location }) => {
+  anchorScroll(location)
+  return true
+}
+exports.shouldUpdateScroll = ({
+  routerProps: { location },
+  getSavedScrollPosition,
+}) => {
+  anchorScroll(location)
+  return true
+}
+
+function anchorScroll(location) {
+  // Check for location so build does not fail
+  if (location && location.hash) {
+    setTimeout(() => {
+      // document.querySelector(`${location.hash}`).scrollIntoView({ behavior: 'smooth', block: 'start' });
+      const item = document.querySelector(`${location.hash}`).offsetTop
+      const mainNavHeight = document.querySelector(`nav`).offsetHeight
+      window.scrollTo({
+        top: item - mainNavHeight,
+        left: 0,
+        behavior: "smooth",
+      })
+    }, 0)
+  }
+}
+```
+
+## Final result
+
+A nice smooth scrolling screen on refresh and internal link click.
+
+<video controls="controls" autoplay="true" loop="true" width="400">
+  <source type="video/mp4" src="https://res.cloudinary.com/ajonp/video/upload/v1571085313/ajonp-ajonp-com/blog/gatsby-anchor-links/anchorScroll.mp4" />
+  <source type="video/webm" src="https://res.cloudinary.com/ajonp/video/upload/v1571085313/ajonp-ajonp-com/blog/gatsby-anchor-links/anchorScroll.webm" />
+  <p>Your browser does not support the video element.</p>
+</video>
