[VFX] Activation slots in blocks

This PR implements the activation ports in block to allow a better/more convenient way to enable/disable blocks with graph.
Activation expressions can be evaluated on both CPU and GPU and works for spawner blocks. Also for compile time constant, an optimized path is used.

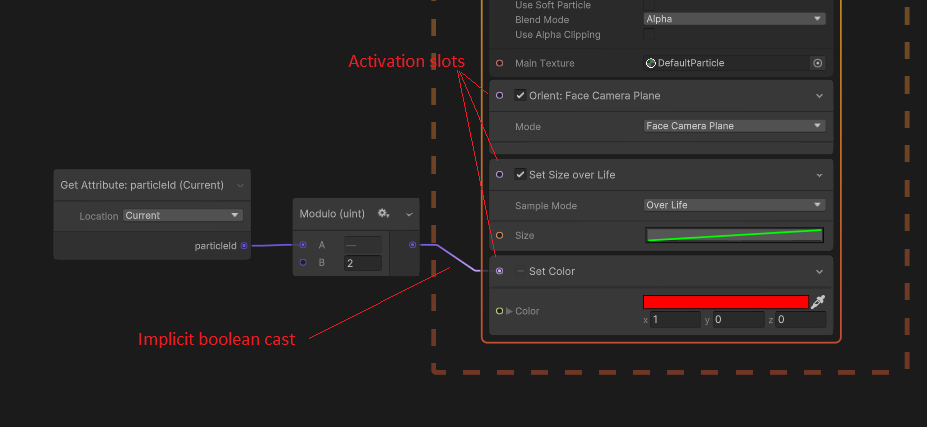

![activationslot](https://user-images.githubusercontent.com/22473360/137947511-7dbeb592-6c4f-4534-bf6b-93afc5c16902.png         )

In addition to the core feature, this PR also:

- Fixes some useless recompilation triggered when dragging an edge out of an output slot connected to some compilable system
- Add bool <> uint, int, float casts
- Optimize the reduction of logical expressions

Fixed https://fogbugz.unity3d.com/f/cases/1428639/

Packages/com.unity.visualeffectgraph/Editor/Compiler/VFXCodeGenerator.cs

@@ -827,6 +827,12 @@ private static StringBuilder TryBuildFromShaderGraph(VFXShaderGraphParticleOutpu

         private static void BuildBlock(VFXContextCompiledData contextData, List<VFXSlot> linkedEventOut, VFXShaderWriter blockFunction, VFXShaderWriter blockCallFunction, HashSet<string> blockDeclared, Dictionary<VFXExpression, string> expressionToName, VFXBlock block, ref int blockIndex)
         {
+            // Check enabled state
+            VFXExpression enabledExp = contextData.gpuMapper.FromNameAndId(VFXBlock.activationSlotName, blockIndex);
+            bool needsEnabledCheck = enabledExp != null && !enabledExp.Is(VFXExpression.Flags.Constant);
+            if (enabledExp != null && !needsEnabledCheck && !enabledExp.Get<bool>())
+                throw new ArgumentException("This method should not be called on a disabled block");
+
             var parameters = block.mergedAttributes.Select(o =>
             {
                 return new VFXShaderWriter.FunctionParameter
@@ -863,19 +869,34 @@ private static void BuildBlock(VFXContextCompiledData contextData, List<VFXSlot>
                     commentMethod);
             }

-            //< Parameters (computed and/or extracted from uniform)
             var expressionToNameLocal = expressionToName;
-            bool needScope = parameters.Any(o => !expressionToNameLocal.ContainsKey(o.expression));
-            if (needScope)
+            bool needsEnabledScope = needsEnabledCheck && !expressionToNameLocal.ContainsKey(enabledExp);
+            bool hasParameterTransformation = parameters.Any(o => !expressionToNameLocal.ContainsKey(o.expression));
+            bool needsParametersScope = needsEnabledCheck || hasParameterTransformation;
+
+            if (needsEnabledScope || hasParameterTransformation)
             {
                 expressionToNameLocal = new Dictionary<VFXExpression, string>(expressionToNameLocal);
+            }
+
+            if (needsEnabledScope)
+            {
+                blockCallFunction.EnterScope();
+                blockCallFunction.WriteVariable(enabledExp, expressionToNameLocal);
+            }
+
+            if (needsEnabledCheck)
+            {
+                blockCallFunction.WriteLineFormat("if ({0})", expressionToNameLocal[enabledExp]);
+            }
+
+            if (needsParametersScope)
+            {
                 blockCallFunction.EnterScope();
                 foreach (var exp in parameters.Select(o => o.expression))
                 {
                     if (expressionToNameLocal.ContainsKey(exp))
-                    {
                         continue;
-                    }
                     blockCallFunction.WriteVariable(exp, expressionToNameLocal);
                 }
             }
@@ -885,7 +906,7 @@ private static void BuildBlock(VFXContextCompiledData contextData, List<VFXSlot>
             {
                 if ((parameters[indexEventCount].mode & VFXAttributeMode.Read) != 0)
                     throw new InvalidOperationException(string.Format("{0} isn't expected as read (special case)", VFXAttribute.EventCount.name));
-                blockCallFunction.WriteLine(string.Format("{0} = 0u;", VFXAttribute.EventCount.GetNameInCode(VFXAttributeLocation.Current)));
+                blockCallFunction.WriteLineFormat("{0} = 0u;", VFXAttribute.EventCount.GetNameInCode(VFXAttributeLocation.Current));
             }

             blockCallFunction.WriteCallFunction(methodName,
@@ -902,7 +923,11 @@ private static void BuildBlock(VFXContextCompiledData contextData, List<VFXSlot>
                         blockCallFunction.WriteLineFormat("{0}_{1} += {2};", VFXAttribute.EventCount.name, VFXCodeGeneratorHelper.GeneratePrefix((uint)eventIndex), VFXAttribute.EventCount.GetNameInCode(VFXAttributeLocation.Current));
                 }
             }
-            if (needScope)
+
+            if (needsParametersScope)
+                blockCallFunction.ExitScope();
+
+            if (needsEnabledScope)
                 blockCallFunction.ExitScope();

             blockIndex++;

Packages/com.unity.visualeffectgraph/Editor/Compiler/VFXExpressionMapper.cs

@@ -35,6 +35,8 @@ public VFXExpressionMapper()

         public void AddExpressionsFromSlotContainer(IVFXSlotContainer slotContainer, int blockId)
         {
+            if (slotContainer.activationSlot != null)
+                AddExpressionsFromSlot(slotContainer.activationSlot, blockId);
             foreach (var master in slotContainer.inputSlots)
                 AddExpressionsFromSlot(master, blockId);
         }
@@ -55,6 +57,7 @@ public static VFXExpressionMapper FromBlocks(IEnumerable<VFXBlock> blocks)
             int cpt = 0;
             foreach (var block in blocks)
             {
+                mapper.AddExpression(block.activationExpression, VFXBlock.activationSlotName, cpt);
                 mapper.AddExpressions(block.parameters, cpt++);
             }
             return mapper;

Packages/com.unity.visualeffectgraph/Editor/Compiler/VFXGraphCompiledData.cs

@@ -1237,6 +1237,9 @@ public void Compile(VFXCompilationMode compilationMode, bool forceShaderValidati

         public void UpdateValues()
         {
+            if (m_ExpressionGraph == null)
+                return;
+
             var flatGraph = m_ExpressionGraph.FlattenedExpressions;
             var numFlattenedExpressions = flatGraph.Count;


Packages/com.unity.visualeffectgraph/Editor/Data/VFXData.cs

@@ -23,6 +23,11 @@ interface ISpaceable
         VFXCoordinateSpace space { get; set; }
     }

+    interface IVFXDataGetter
+    {
+        VFXData GetData();
+    }
+
     abstract class VFXData : VFXModel
     {
         public abstract VFXDataType type { get; }

Packages/com.unity.visualeffectgraph/Editor/Expressions/VFXExpressionCast.cs

@@ -190,4 +190,104 @@ sealed public override string GetCodeString(string[] parents)
             return string.Format("(int){0}", parents[0]);
         }
     }
+
+    class VFXExpressionCastIntToBool : VFXExpression
+    {
+        public VFXExpressionCastIntToBool() : this(VFXValue<bool>.Default) {}
+        public VFXExpressionCastIntToBool(VFXExpression from) : base(Flags.None, new VFXExpression[1] { from }) {}
+        sealed public override VFXExpressionOperation operation => VFXExpressionOperation.CastIntToBool;
+
+        sealed protected override VFXExpression Evaluate(VFXExpression[] reducedParents)
+        {
+            return VFXValue.Constant(reducedParents[0].Get<int>() != 0);
+        }
+
+        sealed public override string GetCodeString(string[] parents)
+        {
+            return string.Format("(bool){0}", parents[0]);
+        }
+    }
+
+    class VFXExpressionCastUintToBool : VFXExpression
+    {
+        public VFXExpressionCastUintToBool() : this(VFXValue<bool>.Default) { }
+        public VFXExpressionCastUintToBool(VFXExpression from) : base(Flags.None, new VFXExpression[1] { from }) { }
+        sealed public override VFXExpressionOperation operation => VFXExpressionOperation.CastUintToBool;
+
+        sealed protected override VFXExpression Evaluate(VFXExpression[] reducedParents)
+        {
+            return VFXValue.Constant(reducedParents[0].Get<uint>() != 0u);
+        }
+
+        sealed public override string GetCodeString(string[] parents)
+        {
+            return string.Format("(bool){0}", parents[0]);
+        }
+    }
+
+    class VFXExpressionCastFloatToBool : VFXExpression
+    {
+        public VFXExpressionCastFloatToBool() : this(VFXValue<bool>.Default) { }
+        public VFXExpressionCastFloatToBool(VFXExpression from) : base(Flags.None, new VFXExpression[1] { from }) { }
+        sealed public override VFXExpressionOperation operation => VFXExpressionOperation.CastFloatToBool;
+
+        sealed protected override VFXExpression Evaluate(VFXExpression[] reducedParents)
+        {
+            return VFXValue.Constant(reducedParents[0].Get<float>() != 0.0f);
+        }
+
+        sealed public override string GetCodeString(string[] parents)
+        {
+            return string.Format("(bool){0}", parents[0]);
+        }
+    }
+
+    class VFXExpressionCastBoolToInt : VFXExpression
+    {
+        public VFXExpressionCastBoolToInt() : this(VFXValue<int>.Default) { }
+        public VFXExpressionCastBoolToInt(VFXExpression from) : base(Flags.None, new VFXExpression[1] { from }) { }
+        sealed public override VFXExpressionOperation operation => VFXExpressionOperation.CastBoolToInt;
+
+        sealed protected override VFXExpression Evaluate(VFXExpression[] reducedParents)
+        {
+            return VFXValue.Constant(reducedParents[0].Get<bool>() ? 1 : 0);
+        }
+
+        sealed public override string GetCodeString(string[] parents)
+        {
+            return string.Format("(int){0}", parents[0]);
+        }
+    }
+    class VFXExpressionCastBoolToUint : VFXExpression
+    {
+        public VFXExpressionCastBoolToUint() : this(VFXValue<uint>.Default) { }
+        public VFXExpressionCastBoolToUint(VFXExpression from) : base(Flags.None, new VFXExpression[1] { from }) { }
+        sealed public override VFXExpressionOperation operation => VFXExpressionOperation.CastBoolToUint;
+
+        sealed protected override VFXExpression Evaluate(VFXExpression[] reducedParents)
+        {
+            return VFXValue.Constant(reducedParents[0].Get<bool>() ? 1u : 0u);
+        }
+
+        sealed public override string GetCodeString(string[] parents)
+        {
+            return string.Format("(uint){0}", parents[0]);
+        }
+    }
+    class VFXExpressionCastBoolToFloat : VFXExpression
+    {
+        public VFXExpressionCastBoolToFloat() : this(VFXValue<float>.Default) { }
+        public VFXExpressionCastBoolToFloat(VFXExpression from) : base(Flags.None, new VFXExpression[1] { from }) { }
+        sealed public override VFXExpressionOperation operation => VFXExpressionOperation.CastBoolToFloat;
+
+        sealed protected override VFXExpression Evaluate(VFXExpression[] reducedParents)
+        {
+            return VFXValue.Constant(reducedParents[0].Get<bool>() ? 1.0f : 0.0f);
+        }
+
+        sealed public override string GetCodeString(string[] parents)
+        {
+            return string.Format("(float){0}", parents[0]);
+        }
+    }
 }

Packages/com.unity.visualeffectgraph/Editor/Expressions/VFXExpressionMath.cs

@@ -848,6 +848,26 @@ sealed protected override string GetBinaryOperationCode(string left, string righ
         {
             return string.Format("{0} && {1}", left, right);
         }
+
+        protected override VFXExpression Reduce(VFXExpression[] reducedParents)
+        {
+            var trueExp = VFXValue.Constant(true);
+            var falseExp = VFXValue.Constant(false);
+
+            // a && false == false && b == false
+            if (reducedParents[0].Equals(falseExp) || reducedParents[1].Equals(falseExp))
+                return falseExp;
+
+            // a && true == a
+            if (reducedParents[1].Equals(trueExp))
+                return reducedParents[0];
+
+            // true && b == b
+            if (reducedParents[0].Equals(trueExp))
+                return reducedParents[1];
+
+            return base.Reduce(reducedParents);
+        }
     }

     class VFXExpressionLogicalOr : VFXExpressionBinaryBoolOperation
@@ -869,6 +889,26 @@ sealed protected override string GetBinaryOperationCode(string left, string righ
         {
             return string.Format("{0} || {1}", left, right);
         }
+
+        protected override VFXExpression Reduce(VFXExpression[] reducedParents)
+        {
+            var trueExp = VFXValue.Constant(true);
+            var falseExp = VFXValue.Constant(false);
+
+            // a || true == b || true == true
+            if (reducedParents[0].Equals(trueExp) || reducedParents[1].Equals(trueExp))
+                return trueExp;
+
+            // a || false == a
+            if (reducedParents[1].Equals(falseExp))
+                return reducedParents[0];
+
+            // false || b == b
+            if (reducedParents[0].Equals(falseExp))
+                return reducedParents[1];
+
+            return base.Reduce(reducedParents);
+        }
     }

     class VFXExpressionLogicalNot : VFXExpressionUnaryBoolOperation

Packages/com.unity.visualeffectgraph/Editor/GraphView/BoundsRecorder/VFXBoundsRecorder.cs

@@ -228,73 +228,25 @@ void OnParamSystemModified(VFXModel model, VFXModel.InvalidationCause cause)
         {
             if (isRecording)
             {
-                if (cause == VFXModel.InvalidationCause.kParamChanged)
+                if (cause == VFXModel.InvalidationCause.kParamChanged || cause == VFXModel.InvalidationCause.kExpressionValueInvalidated)
                 {
                     if (model is VFXSlot)
                     {
                         var slot = model as VFXSlot;
                         if (slot.name == "bounds" || slot.name == "boundsPadding")
                             return;
-                        foreach (var data in GetAffectedData(slot))
+
+                        if (slot.owner is IVFXDataGetter)
                         {
-                            var particleData = data as VFXDataParticle;
-                            if (particleData != null)
+                            if (((IVFXDataGetter)slot.owner).GetData() is VFXDataParticle particleData)
                             {
                                 string systemName = m_Graph.systemNames.GetUniqueSystemName(particleData);
                                 m_FirstBound[systemName] = true;
                             }
                         }
                     }
                 }
-
-                if (cause == VFXModel.InvalidationCause.kEnableChanged)
-                {
-                    if (model is VFXBlock)
-                    {
-                        var block = model as VFXBlock;
-                        var particleData = block.GetData();
-                        if (particleData != null)
-                        {
-                            string systemName = m_Graph.systemNames.GetUniqueSystemName(particleData);
-                            m_FirstBound[systemName] = true;
-                        }
-                    }
-                }
-            }
-        }
-
-        IEnumerable<VFXData> GetAffectedData(VFXSlot slot)
-        {
-            var owner = slot.owner;
-            var block = owner as VFXBlock;
-            if (block != null && block.enabled)
-            {
-                yield return block.GetData();
-                yield break;
-            }
-            var ctx = owner as VFXContext;
-            if (ctx != null)
-            {
-                yield return ctx.GetData();
-                yield break;
-            }
-
-            var op = owner as VFXOperator;
-            if (op != null)
-            {
-                var outSlots = op.outputSlots;
-                foreach (var outSlot in outSlots)
-                {
-                    foreach (var linkedSlot in outSlot.LinkedSlots)
-                    {
-                        foreach (var data in GetAffectedData(linkedSlot))
-                        {
-                            yield return data;
-                        }
-                    }
-                }
             }
-            //otherwise the owner is a VFXParameter, and we do not want to reset the bounds in this case
         }

         internal void UpdateBounds()

Packages/com.unity.visualeffectgraph/Editor/GraphView/Elements/Controllers/VFXBlockController.cs

@@ -12,6 +12,7 @@ namespace UnityEditor.VFX.UI
     class VFXBlockController : VFXNodeController
     {
         VFXContextController m_ContextController;
+
         public VFXBlockController(VFXBlock model, VFXContextController contextController) : base(model, contextController.viewController)
         {
             m_ContextController = contextController;

Packages/com.unity.visualeffectgraph/Editor/GraphView/Elements/Controllers/VFXContextController.cs

@@ -236,6 +236,7 @@ static VFXBlock DuplicateBlock(VFXBlock block)

             VFXBlock result = duplicated.OfType<VFXBlock>().First();

+            block.activationSlot.UnlinkAll(true, false);
             foreach (var slot in result.inputSlots)
             {
                 slot.UnlinkAll(true, false);
